G3X in bonanza

[xavierp]

Hello,

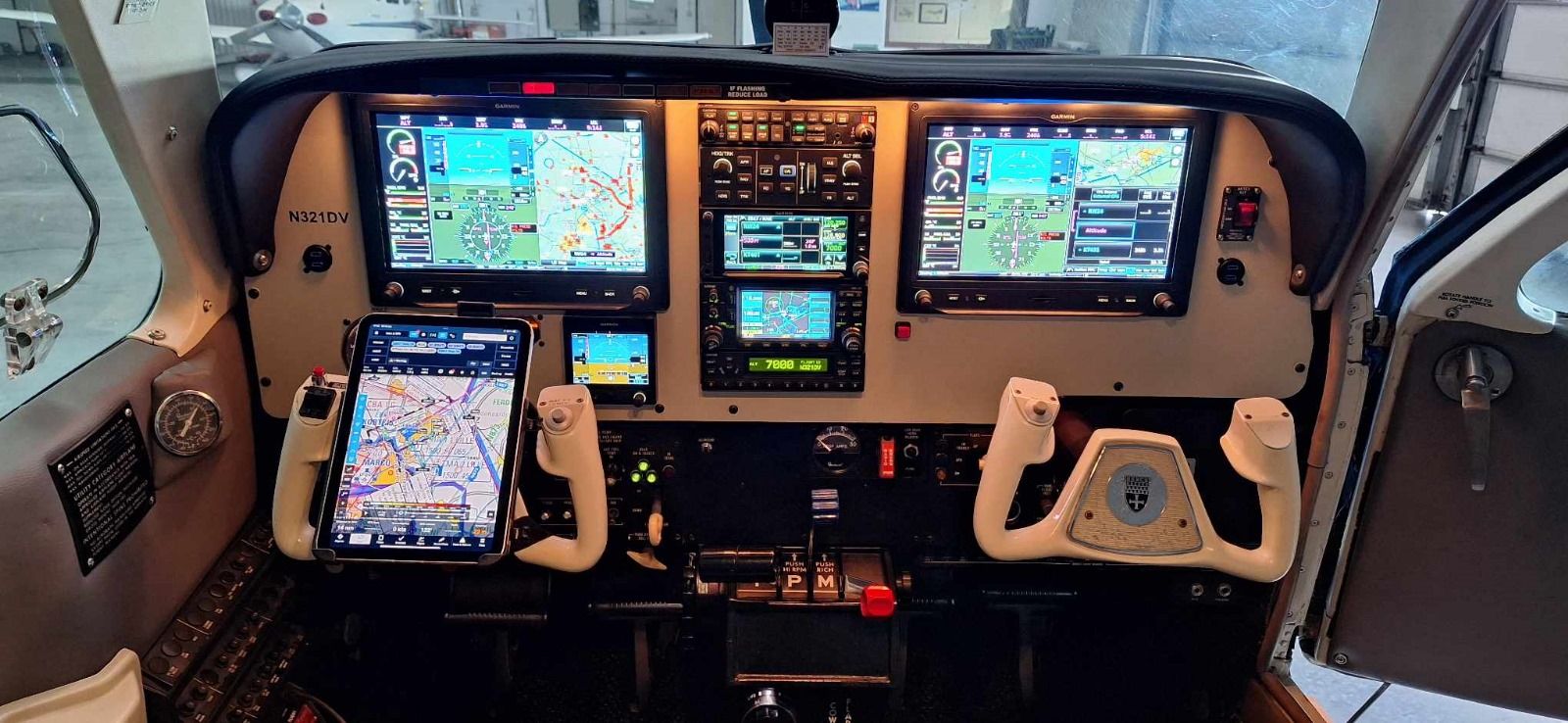

We own a Bonanza 36 in Belgium. It got an instrumentation makeover and has 2 G3x, G5 GTN 650.
I would love to know if it would be possible to use asobo G3X and TDS gauge with this bonanza pro.
I guess I cannot ask a modder to change BlackSquare files and it has to be done by BlackSquqre directly.
Thank you
Xavier

[Black Square]

Hello! If you're asking for the models and systems to be added to the aircraft and for this to be made a standard option in the package, that is both a large amount of work, and also technically difficult due to the hot-swapping limitations of the WT G3X. However, if you're building a home cockpit, then you have an option that I've seen used in several of my other aircraft. You could create the local modifications necessary to replace the GTN 750 with a G3X, and render the screen to your home cockpit. If this is what you're looking for, I suggest taking a look at this modification for a King Air home cockpit based on my aircraft.

[xavierp]

I appreciate the fast reply that I had missed so far.
Basically, I want to use your bonanza flight model and have 2 popped out G3X (working so showing 6 pistons and so on) I want to be able to integrate with a pooped out GTN 650/750.... (TDS), I also need a G5.... maybe there would be a way to integrate some fake gauges to which we could link WT G3x, TDS.... Not sure this makes any sense..... I have all my fingers crossed

[Black Square]

@xavierp Yes, what you describe is basically possible, and is the technique demonstrated in the link above. I apologize that I can't take this on myself right now, but I'm happy to help you with the finer details if you decide to attempt it yourself.

[xavierp]

Thanks again for the support. Much much much appreciated. Very thankful.
I m willing to attempt myself but before doing so I want to make sure it is possible.

1. Will i be able to use your Aircraft in home cockpit view and see correct information on popped out WT G3X windows (6 pistons and so on) and TDS?
2. If you only have limited gauge in your model - how can I assign 2 G3x (pilot copilot) 1G5 and the TDS nxi (650 750)
   I thought you would need to add virtual invisible gauge to your aircrafts files in which i would be able to place G3x g5 and gtn gauges myself but if there are not enough of them.... not sure i can do this all.
   I'm willing to pay for anyone who could do this by the way

[xavierp]

I'm really lost, anyone willing to help for cash or a plabe ride out of Courtrai Belgium.

[xavierp]

actually making good progresses on my own i ll report back when done

[xavierp]

Ok so far, i get the 2 G3x and G5 by modifying panel.cfg

[VCockpit12]
; G3X PFD
size_mm = 1280,768
pixel_size = 1280,768
texture = $DmeScreen
background_color = 0,0,0
htmlgauge00=NavSystems/G3XTouchv2/G3XTouch.html?Index=1&no_stretch=1, 0,0,1280,768

[VCockpit13]
; G3X MFD
size_mm = 1280,768
pixel_size = 1280,768
texture = $Kns81Screen
background_color = 0,0,0
htmlgauge00=NavSystems/G3XTouchv2/G3XTouch.html?Index=1&no_stretch=1, 0,0,1280,768

[VCockpit14]
; --- G5 anchor (was Weather Radar) ---
size_mm = 512,380
pixel_size = 512,380
texture = $RadarScreen
background_color = 0,0,0
htmlgauge00=NavSystems/AS5/AS5.html?Index=1, 0,0,512,380

The G3x works partially.
I now need to find a way to feed data from the sim to the G3x gauge (motor, gps,...)

[xavierp]

Ok sadly i have to give up, I spent hours trying to get further than where I m. I feel a new panel.xml should be created to feed correct data into the G3x...
Then hopefully when it is done, there is a connection between TDS and WT G3000 (i know they should crossfill but not sure if something has to be done on my side) Hopefully someone could help......
