KR87 Knobs - no H:Event, Var or B:event for knob movement

Scheduled Pinned Locked Moved TBM 850
5 Posts 1 Posters 17 Views 1 Watching
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • D Online
    D Online
    dkgolfnut
    wrote last edited by
    #1

    I am trying to set up your TBM850 in a Shared Cockpit profile for FSCopilot. I have several items that are not touchable when trying to sync to the other aircraft. What I have noticed is if the interaction knob in this example the KR87 Large or small knobs do not have an H:Event like the KNS80 Large and small knob. I can with spadnext sent the K:ADF_1_INC or DEC from a hardware mapping and it sends to the first plane fine. What isn't happening is the sync to the second airplane because it is looking for the actual knob to move via LVAR or H:Event as the "- get: value" in order to set:ADF_1_INC or set:ADF_1_ecC

    1 Reply Last reply
    0
    • D Online
      D Online
      dkgolfnut
      wrote last edited by
      #2

      For some reason my entire post didn’t come through. I will have to add the addition info

      1 Reply Last reply
      0
      • D Online
        D Online
        dkgolfnut
        wrote last edited by
        #3

        FSCockpit uses a get: (LVARS, H:events: A:vars, Bvars) and set: (of LVARS and K,B,H events) approach needing a variable to grab and then send the appropriate K: event or direct LVAR commands. Here are examples of the Lage knob from the KNS80 and the KR87

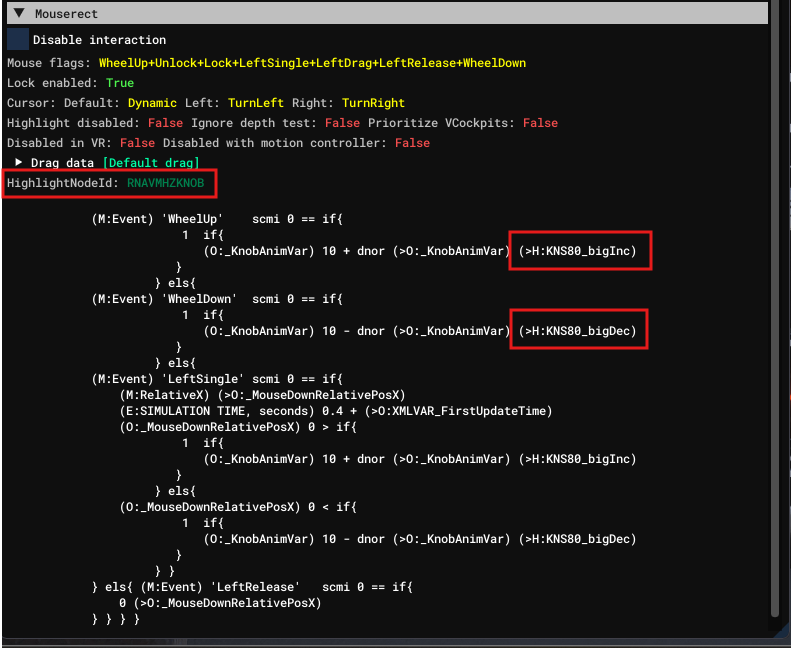

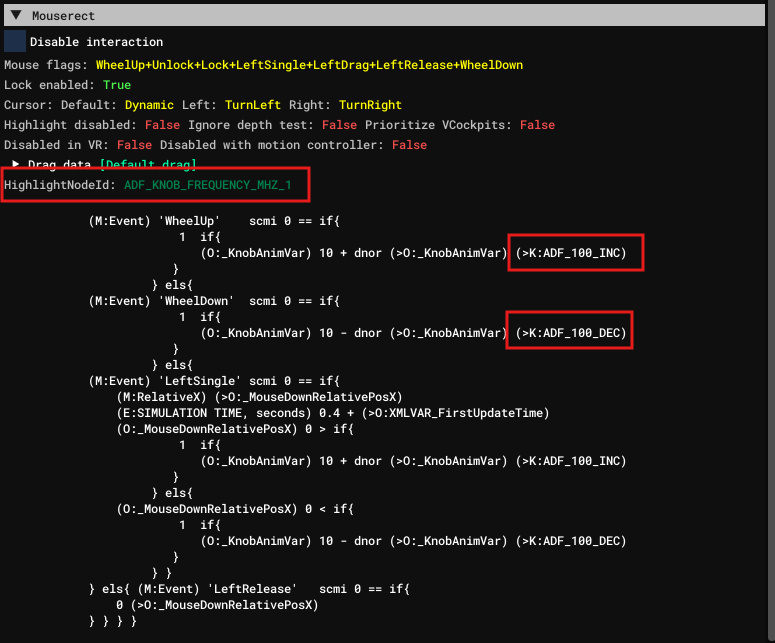

        1_ADF KNOB not working.png 1_RNAV knob good.png KR87

        1 Reply Last reply
        0
        • D Online
          D Online
          dkgolfnut
          wrote last edited by
          #4

          1_RNAV knob good.png 1_ADF KNOB not working.png

          1 Reply Last reply
          0
          • D Online
            D Online
            dkgolfnut
            wrote last edited by
            #5

            I have several other areas like this that a little tweak can assist in getting a fully compatible synch. I would respectfully ask if you can take a look at the differences and be willing to update by adding a specific H:event to get the interaction and leave the K:event to set the change for synchronization. Thank you for considering this.

            1 Reply Last reply
            0
