I'm confused about some of the BKSQ variables.

[eracer1111]

@Black-Square

Well this was interesting. I restored the original XML and the cockpit is back to normal.
I searched for <CIRCUIT_ID>@FuelPumpCircuit</CIRCUIT_ID> in the 'BonanzaProfessional_Base_INT.XML' and only found one instance (Line 10226) Did I miss something?

[Black Square]

Eugh. That's probably MSFS 2024 being up to it's new tricks. I've yet to figure out when it does this for some users, and sometimes not for others, but it seems that sometimes MSFS 2024 enforces the encoded package size as a form of software "safety". You can download this program, and drag-and-drop "layout.json" from the root of the package directly on top of the program. It will run in a fraction of a second and encode a new package size. Sorry for the extra step. Let me know if that fixes it.

[eracer1111]

@Black-Square
Thanks for the quick reply. I want to clear about the steps before I do this.
When you say "drop the .json on top of the program" do you mean the sim's .exe file?
There are two in the \content folder that will launch the sim:

flightsimulator2024.exe
gamelaunchhelper.exe

I use the latter with a -fastlaunch switch.

Or are you saying to drop the 'layout.json' file somewhere else?

[Black Square]

I'm glad you clarified. I mean the exe that comes from the download link in my last message. That's a tiny program that rebuilds the layout.json with any changes you have made. Again, sorry for the extra step. I've never been able to determine why this is necessary for some users and not others. It makes it difficult to tell, since many users who edit files are already familiar with MSFSLayoutGenerator.exe, so they run it every time, whether prompted or not. Anyway, let me know if you have any other questions!

[eracer1111]

Thank you! I'll let you know how it goes.
Microsoft definitely does their own thing. I try to remind people on the forum that creating an aircraft model isn't simple - especially for MSFS 2024. Some folks think updates from FS20 versions to FS24 should all be free. They have no idea the amount of work involved, especially when faced with a new SDK and Microsoft's DRM strategies.

For that reason alone I can't imagine chasing down problems that happen to some folks, but not to others. So many variables affect how things integrate. Thanks again for a great plane!

[eracer1111]

@Black-Square

It worked. Thanks!

I edited the XML, dropped layout.json onto MSFSLayoutGenerator.exe, launched the sim, and the cockpit looks normal. I can monitor the status with 'L:var_Breaker_AuxFuelPump_readonly'

Perfect!

I'm going to try it with the other breakers I'm having an issue with.

Aux Fuel Pump (FIXED)
Vent Blowers
Air Cond
Air Cond Blower
STBY Gyro

I assume I need to drop the layout.json onto the 'program' after every XML edit?

EDIT: So I edited the XML 'VentBlowers' section to add the Export line:

<CIRCUIT_ID>@VentBlowersCircuit</CIRCUIT_ID>
EXPORT_LVAR>TRUE</EXPORT_LVAR>

Got the same partial cockpit.

• So I dropped layout.json on the 'program' again, but that did not fix the cockpit.
• I took the new line out of the XML and the cockpit returned to normal.
• I added the EXPORT line back in after the 'VentBlower' Circuit ID and didn't drop the JSON, and got the partial cockpit.
• Now I'm back to just having the EXPORT line after the 'AuxFuel' Circuit ID line, and the cockpit is back to normal.

I'm still trying to get the other breakers to return a status. Your method worked for one, but not for more than one.

Please understand that while I'm comfortable (and careful) editing XML files, I don't know the language.

As always, thanks for your help.

[Black Square]

@eracer1111 Just once after you've made all your edits. Glad that works for you. The engineer in me wants to know why the other ones are working when they kind of shouldn't be, but I will just be happy that you have a solution that works for you. You hit the nail on the head with your previous message. The same thing that makes me rage against the complexity is also what makes me provide custom solutions like this for my users. I know that I have developed tricks that might completely stymie someone else, so I always provide the fastest possible solution that I can, even if it means editing local files. I'm always happy to answer any more questions!

[eracer1111]

[Black Square]

The simplest solution would be to add the EXPORT_LVAR line to every breaker component in the XML. This sound tedious, but with the right text editor, or even a clever find/replace, it could be done in seconds. Like I said, there is kind of no reason that the other ones should be working, so I'm not surprised to find that they might be inconsistent. I never back down from a fight with my software, so you let me know what else I can do to help you

[eracer1111]

That made me laugh. Years ago my main job was building and fixing client video editing computers. My mantra was, "No computer has ever, or will ever defeat me!"

I'll keep working on this, because I still have that "Never give up, never surrender!" mentality.

I just wish I knew more about why things with this sim work the way they do (and sometimes don't.)

[Black Square]

@eracer1111 By Grabthar's hammer, you shall be avenged!

[eracer1111]

@Black-Square

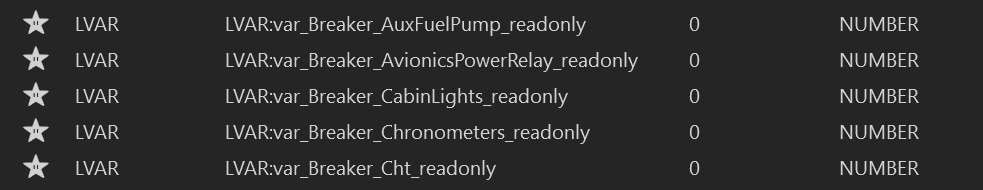

OK, I added EXPORT_LVAR to all the Breakers, then dropped layout.json onto the 'Program' and everything is great! All the readonly vars for all the breaker were exposed, and I'm using them to return status.

One exception though, and I'm sure it's a misunderstanding on my part. 'Cabin Lights' has 6 Circuit ID's.
To trip the breaker I set them all to 0, and to reset them I set them all to 1.

<UseTemplate Name="BKSQ_SWITCH_BREAKER_TEMPLATE_MULTI_6">
NODE_ID>Breaker_CabinLights</NODE_ID>
<PART_ID>Breaker_CabinLights</PART_ID>
<CIRCUIT_ID_1>@CabinLight1Circuit</CIRCUIT_ID_1>
<EXPORT_LVAR>TRUE</EXPORT_LVAR>
<BUS_ID_1>@MainBus</BUS_ID_1>
<CIRCUIT_ID_2>@CabinLight2Circuit</CIRCUIT_ID_2>
<EXPORT_LVAR>TRUE</EXPORT_LVAR>
<BUS_ID_2>@MainBus</BUS_ID_2>
<CIRCUIT_ID_3>@CabinLight3Circuit</CIRCUIT_ID_3>
<EXPORT_LVAR>TRUE</EXPORT_LVAR>
<BUS_ID_3>@MainBus</BUS_ID_3>
<CIRCUIT_ID_4>@CabinLight4Circuit</CIRCUIT_ID_4>
<EXPORT_LVAR>TRUE</EXPORT_LVAR>
<BUS_ID_4>@MainBus</BUS_ID_4>
<CIRCUIT_ID_5>@CabinLight5Circuit</CIRCUIT_ID_5>
<EXPORT_LVAR>TRUE</EXPORT_LVAR>
<BUS_ID_5>@MainBus</BUS_ID_5>
<CIRCUIT_ID_6>@CabinLight6Circuit</CIRCUIT_ID_6>
<EXPORT_LVAR>TRUE</EXPORT_LVAR>
<BUS_ID_6>@MainBus</BUS_ID_6>
<WWISE_EVENT_1>bksq_duke_cbsmall</WWISE_EVENT_1>
<WWISE_EVENT_2>bksq_duke_cbsmall</WWISE_EVENT_2>
<TOOLTIP_TITLE/>
<TOOLTIPID>Cabin Lights</TOOLTIPID>
</UseTemplate>

But I only see 1 readonly LVAR for CabinLights, and I'm not getting the image change when it changes with the Circuit.

[Black Square]

Great. Glad that wasn't too difficult. You are correct that there is only one breaker for all the cabin lights. When my failure code triggers a failure of the cabin lights, it will trip all six circuits off the bus. They only have to be separate because of how the lighting system works in MSFS. If I'm reading your message correctly, it sounds like the L:Var isn't changing when you click the breaker in the simulator?
