Images for RDR1150XL, KFC150, and KNS81
-
I'm working on an air manager panel for the Baron 58 and I'm trying to find a good images of the RDR1150XL, KFC150, and KNS81 for it. Is it in the community folder somewhere? Looks like it's in the ktx2 files and I found an extractor but that pulls 3 images with strange colors that aren't really usable. If not available there any chance I could get the face on shot of those?
-
You won't find images in there that would be any help to what you're doing, unfortunately. Just abstract shapes that get assembled into the final object. I think you might be best off taking high quality screenshots with a high zoom level (to minimize lens effects) in the simulator. Let me know if there is anything I can do to help.
-

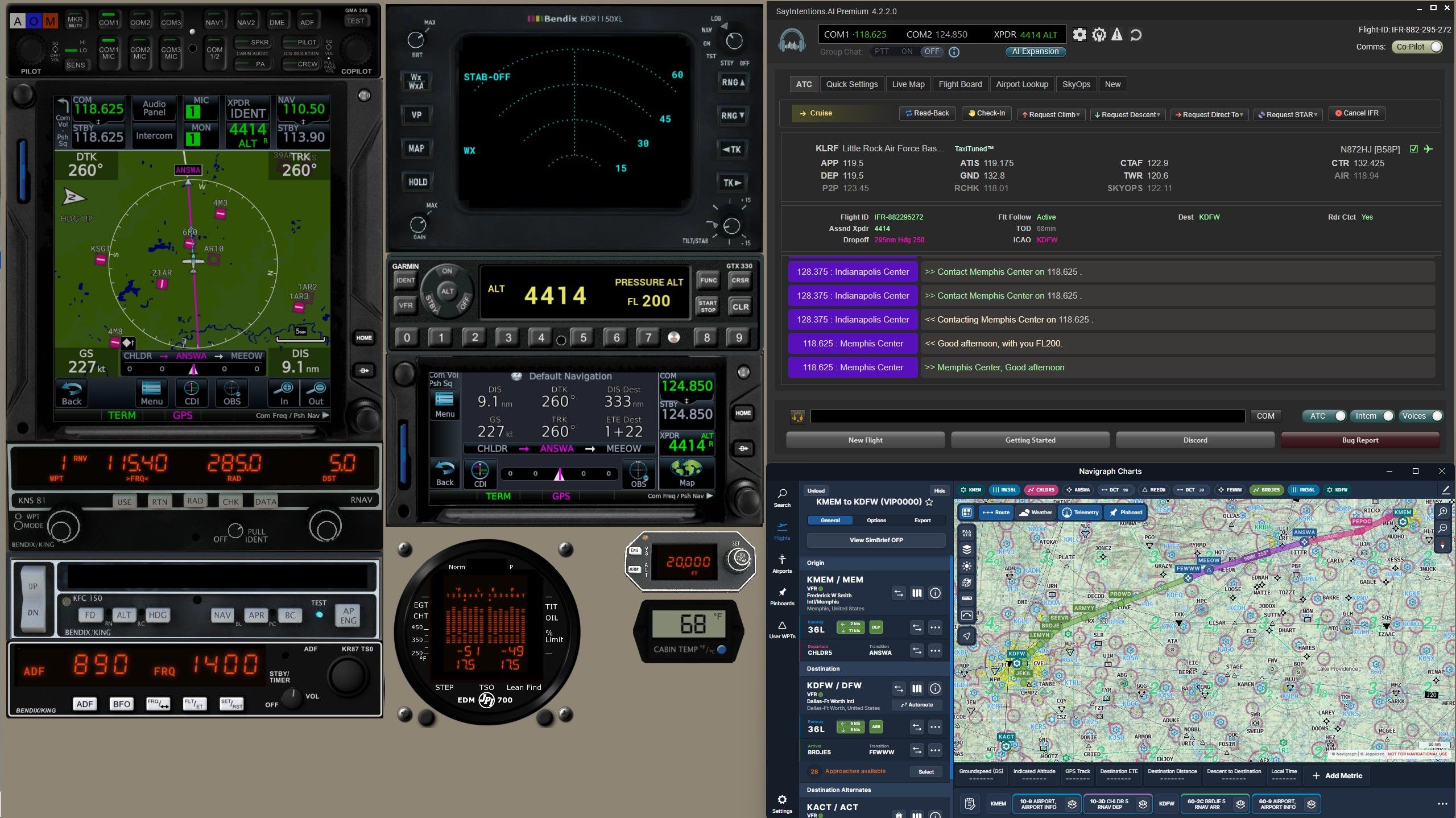

Thanks. Good thought on the high zoom level - lens effects was the issue I was running into trying to grab screen shots. I got close with pics off search engines but I think I can still do better. This is my first foray into air manager . . . . got all the avionics displays working except the KFC 150 (Glass Out isn't finding the KFC) - still have to get the buttons working on the KNS 81, KFC 150, KR87 and the radar but I'll get there. This will be on a 24" touch panel to the right of an altimeter motives Baron panel that's on the way
.
