      Howdy All

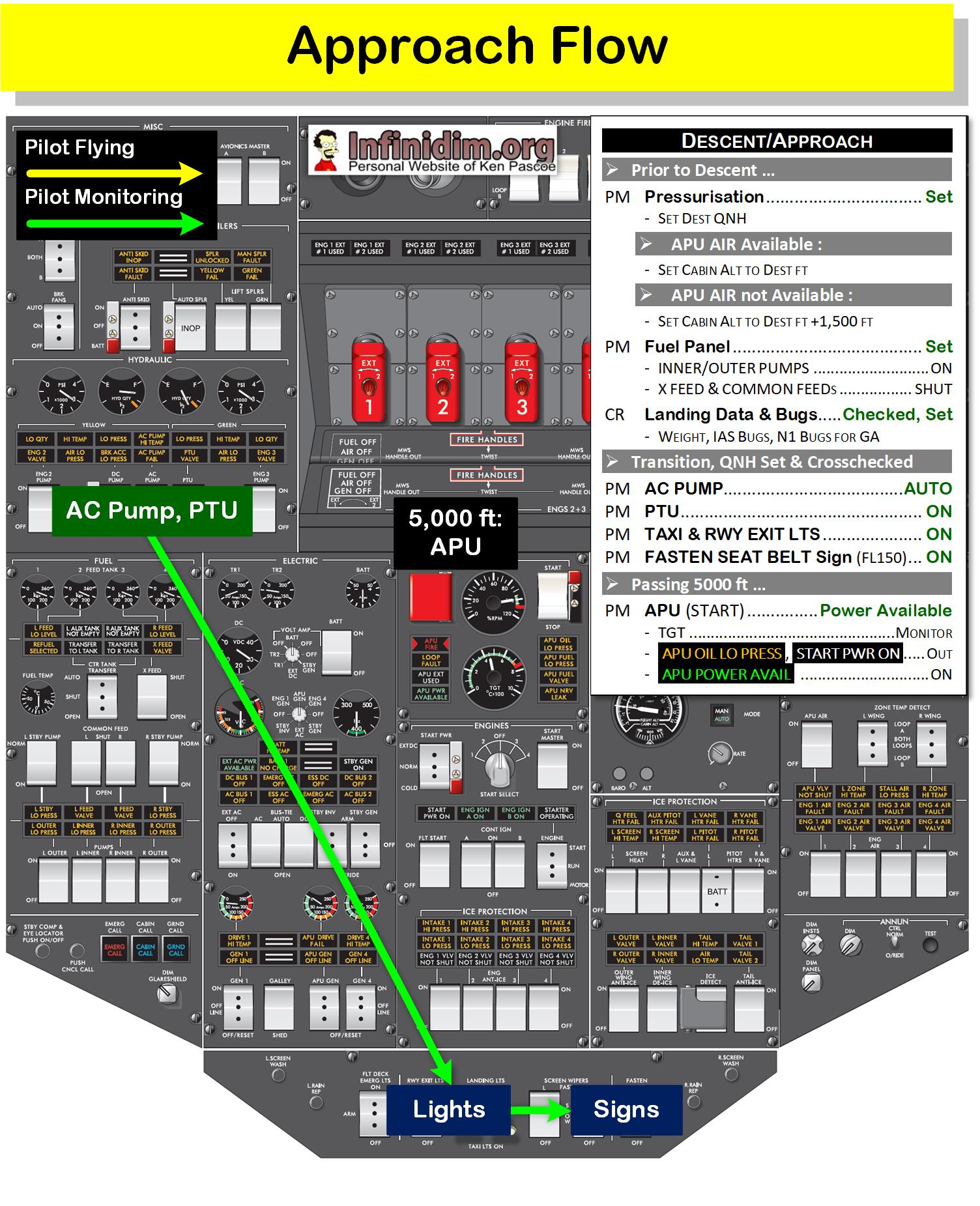

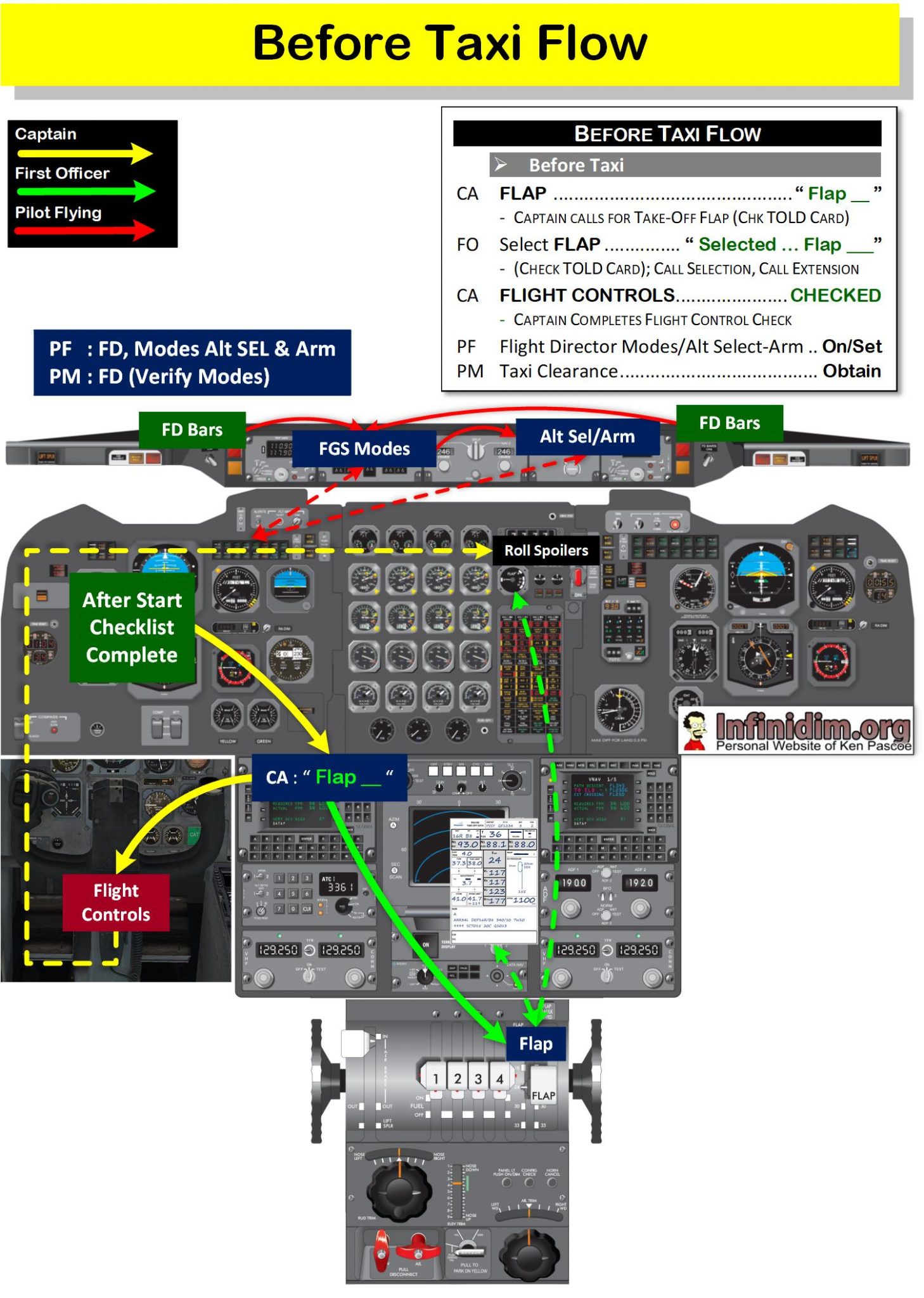

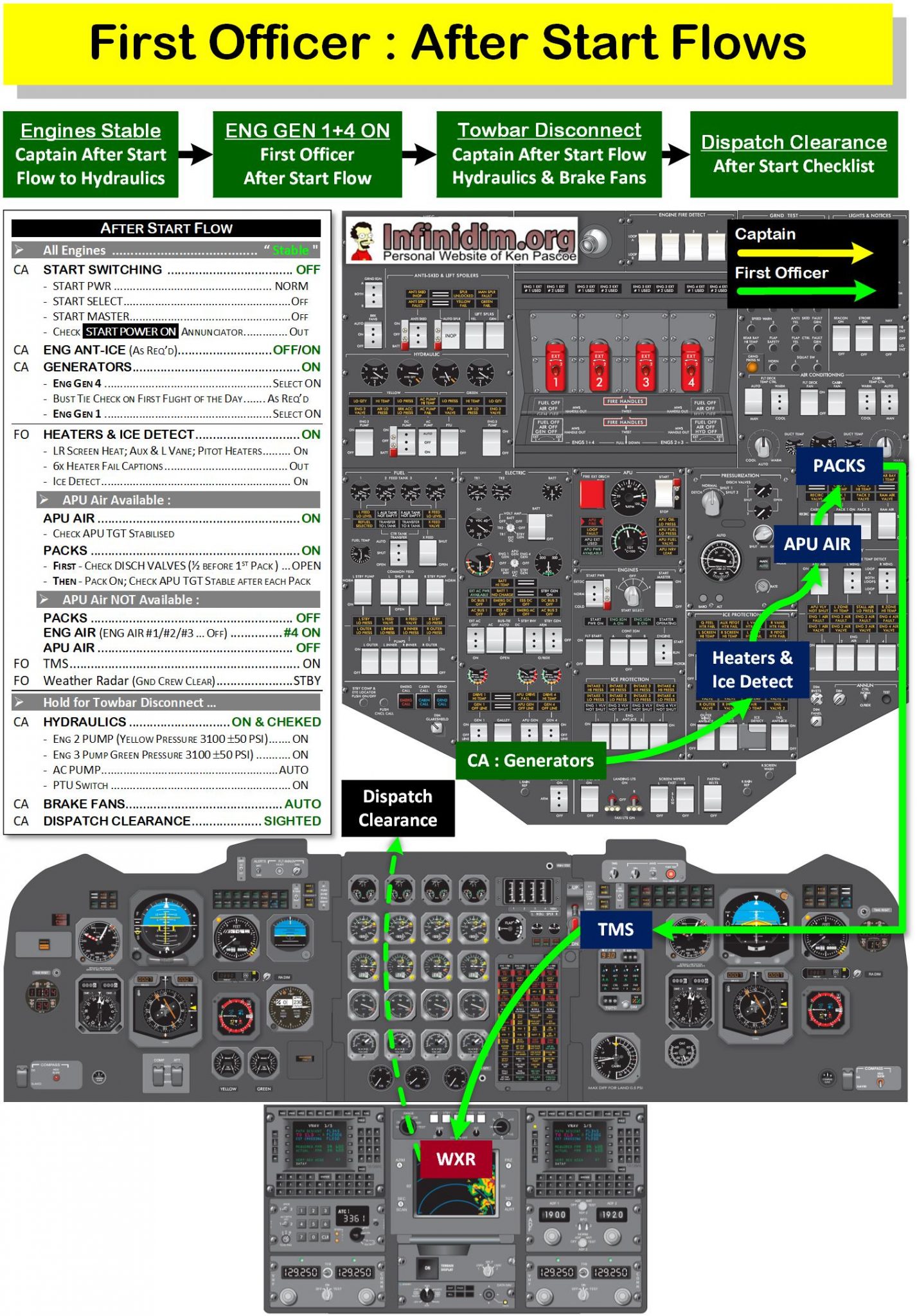

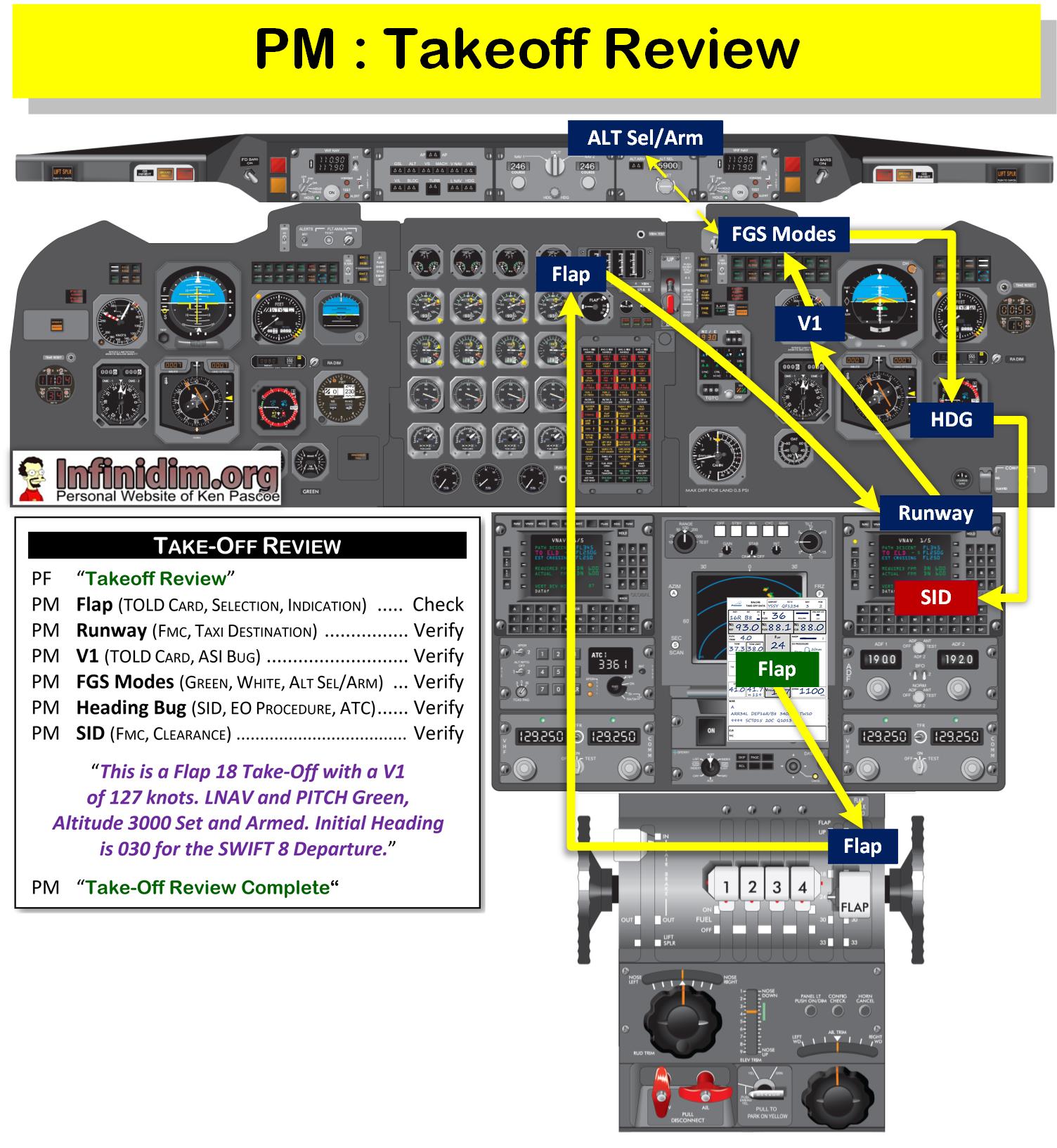

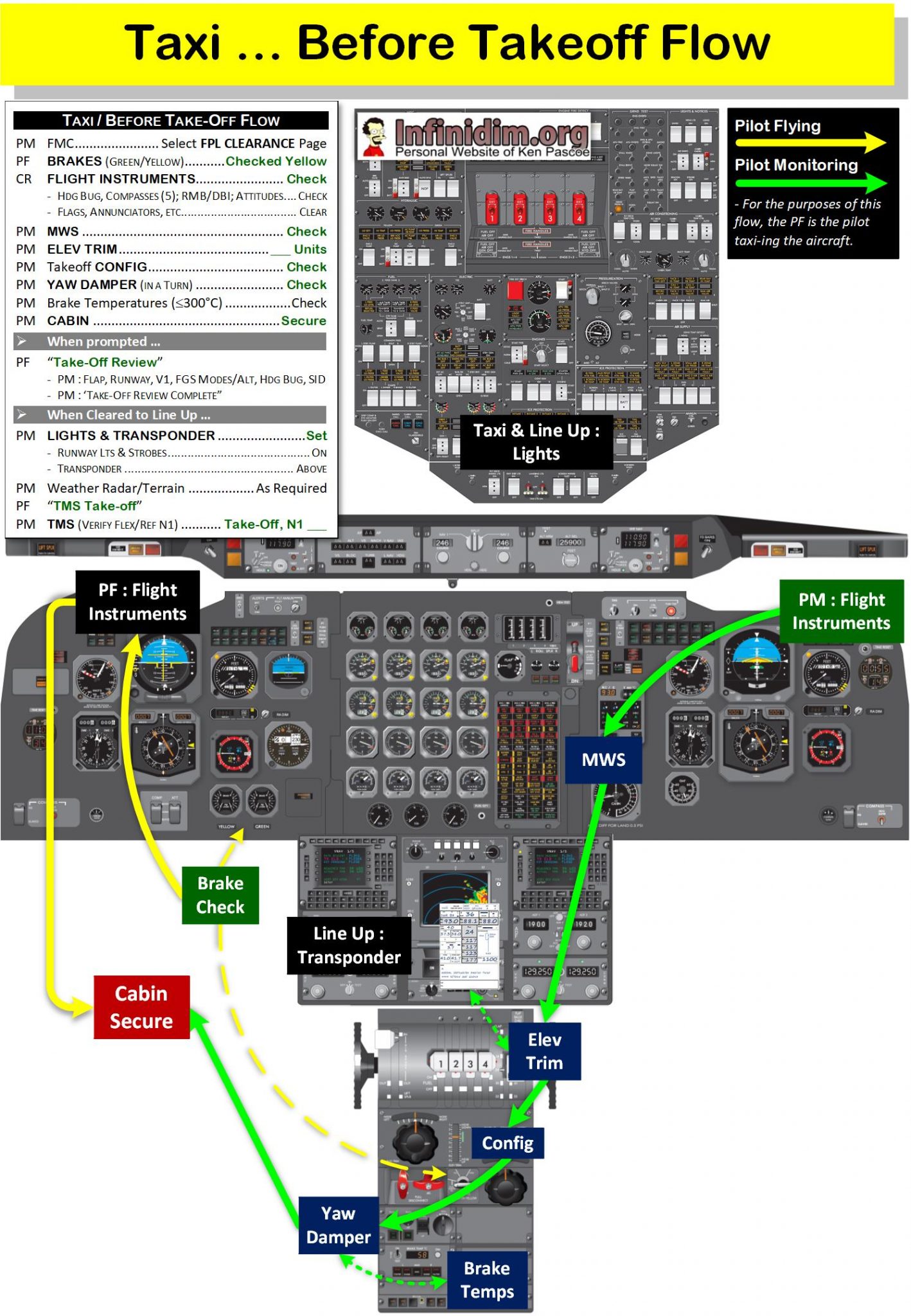

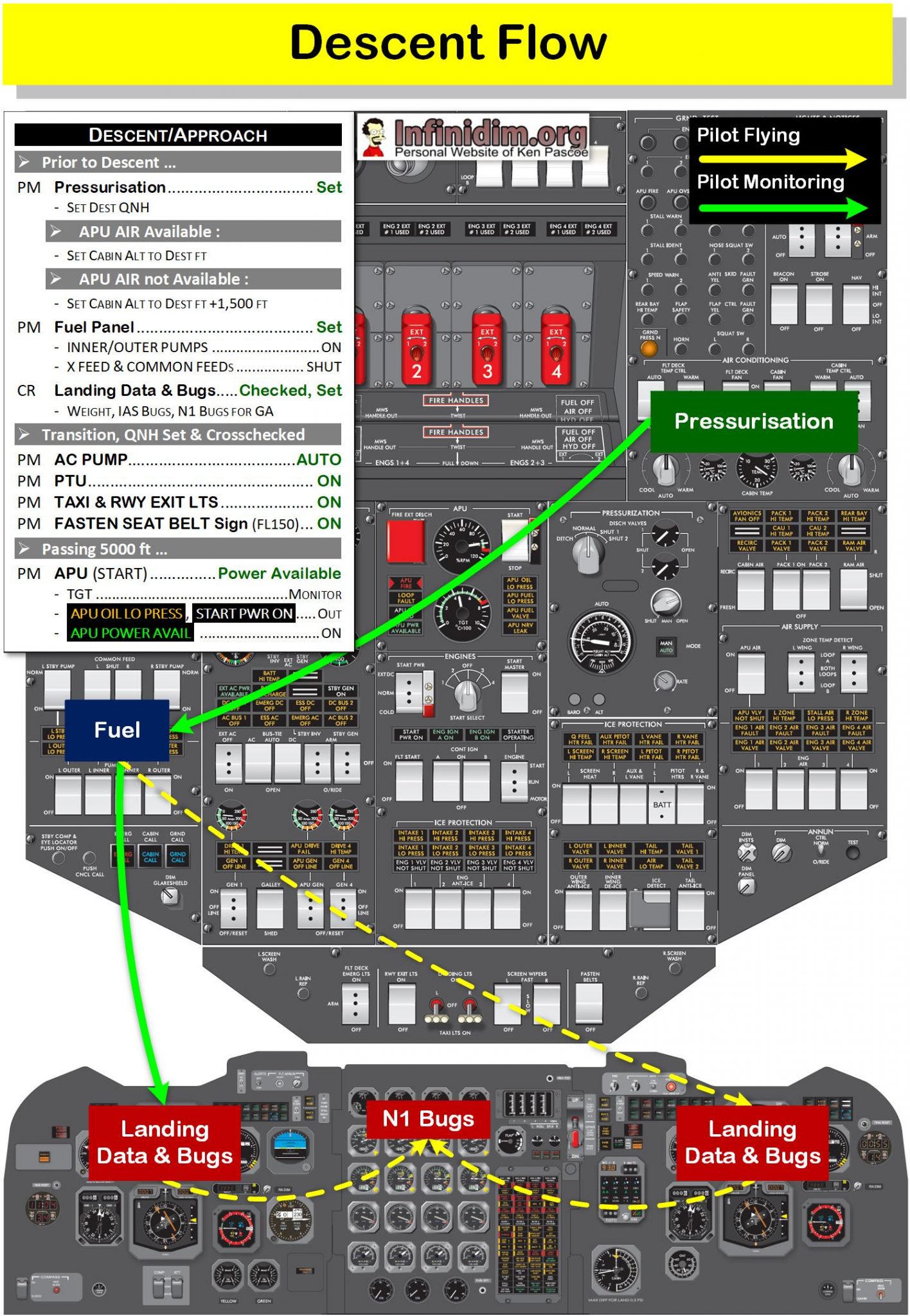

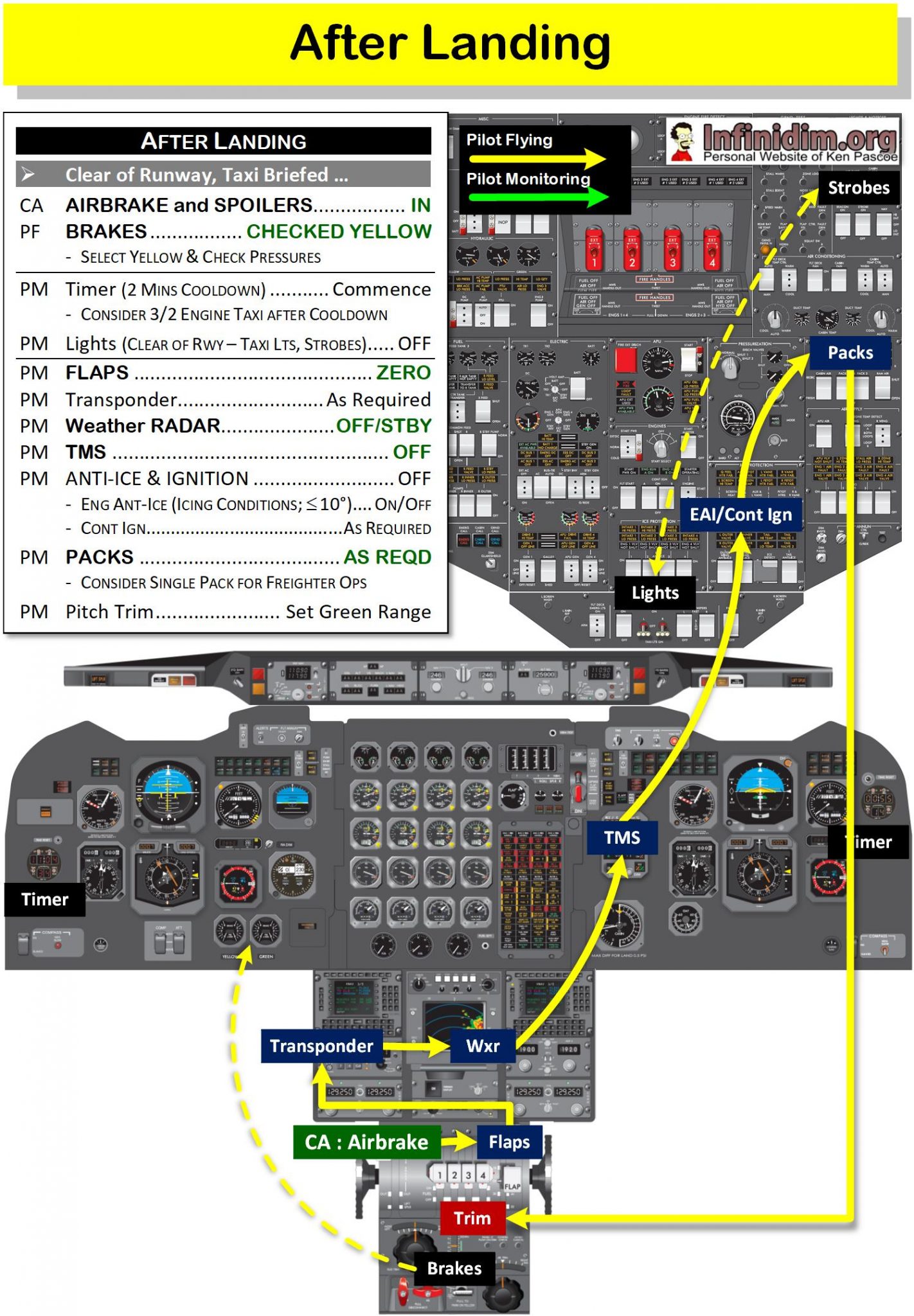

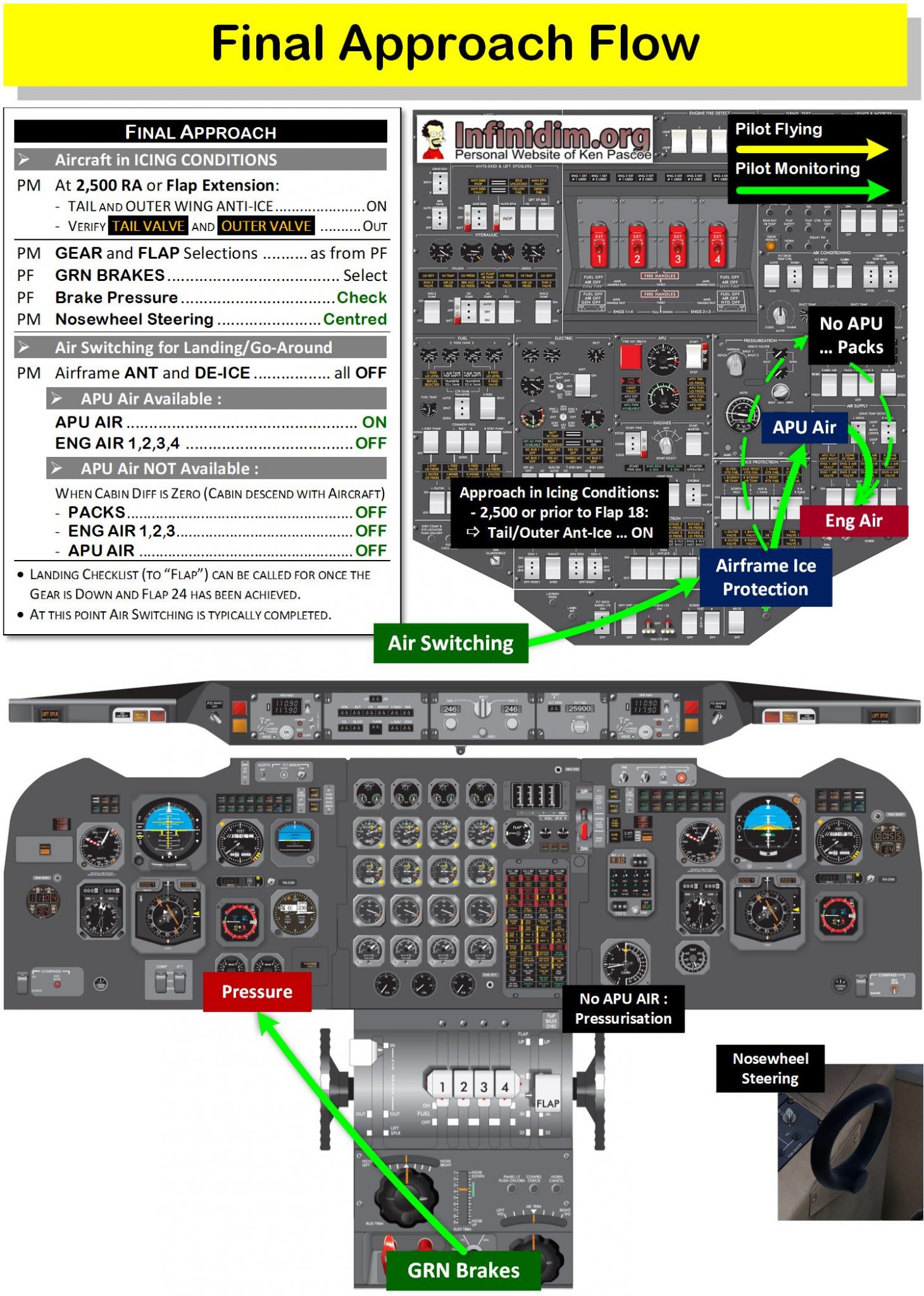

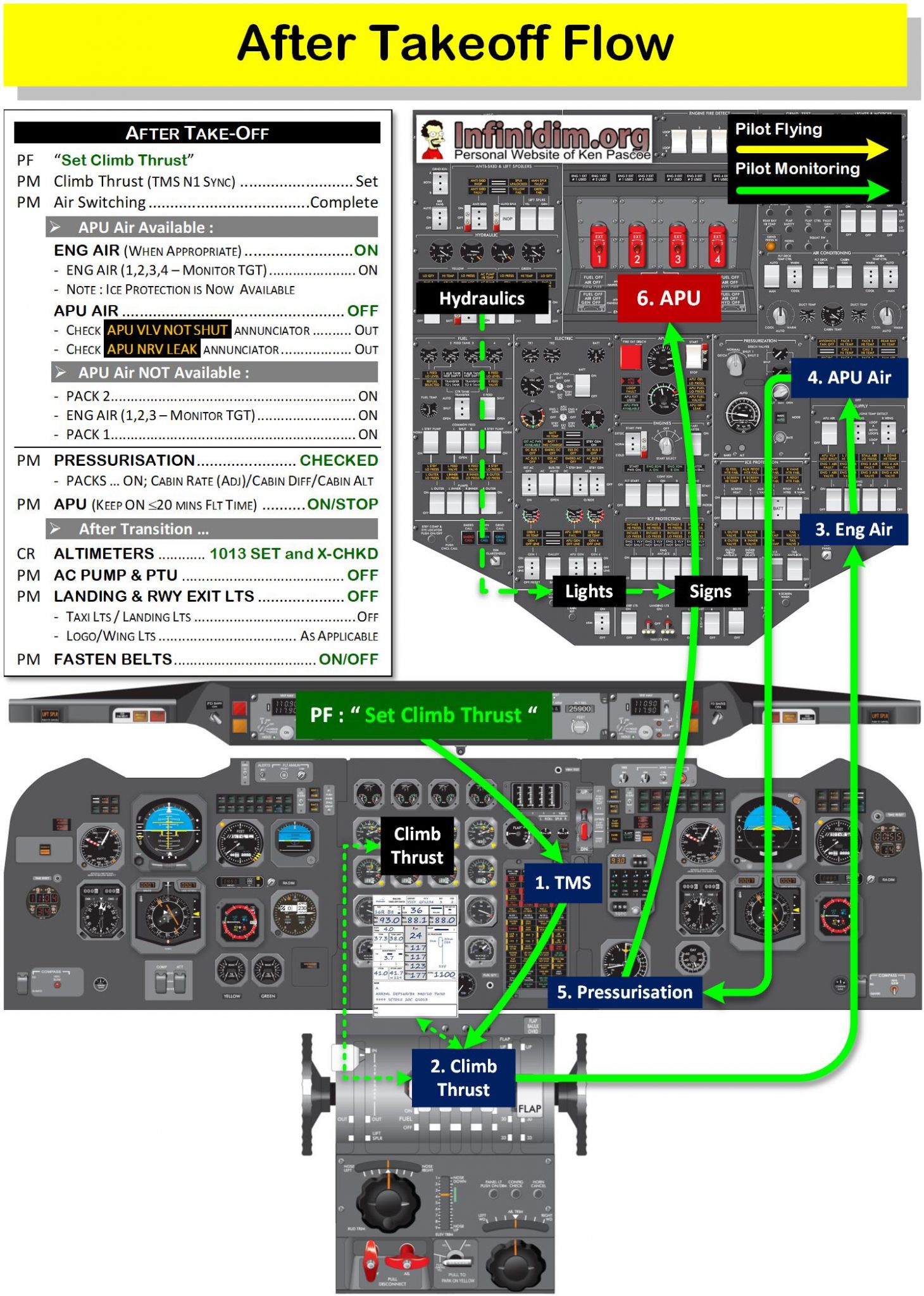

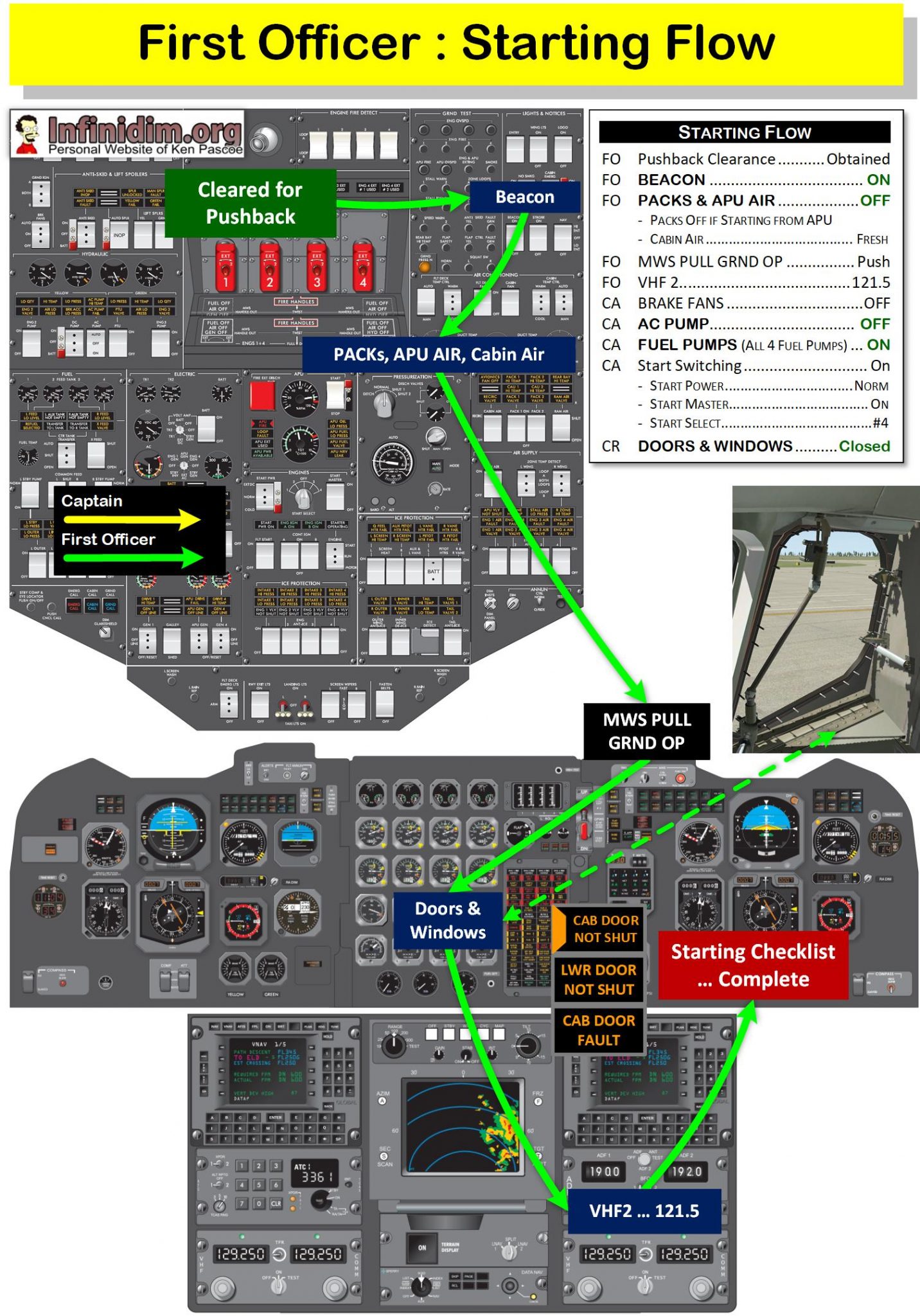

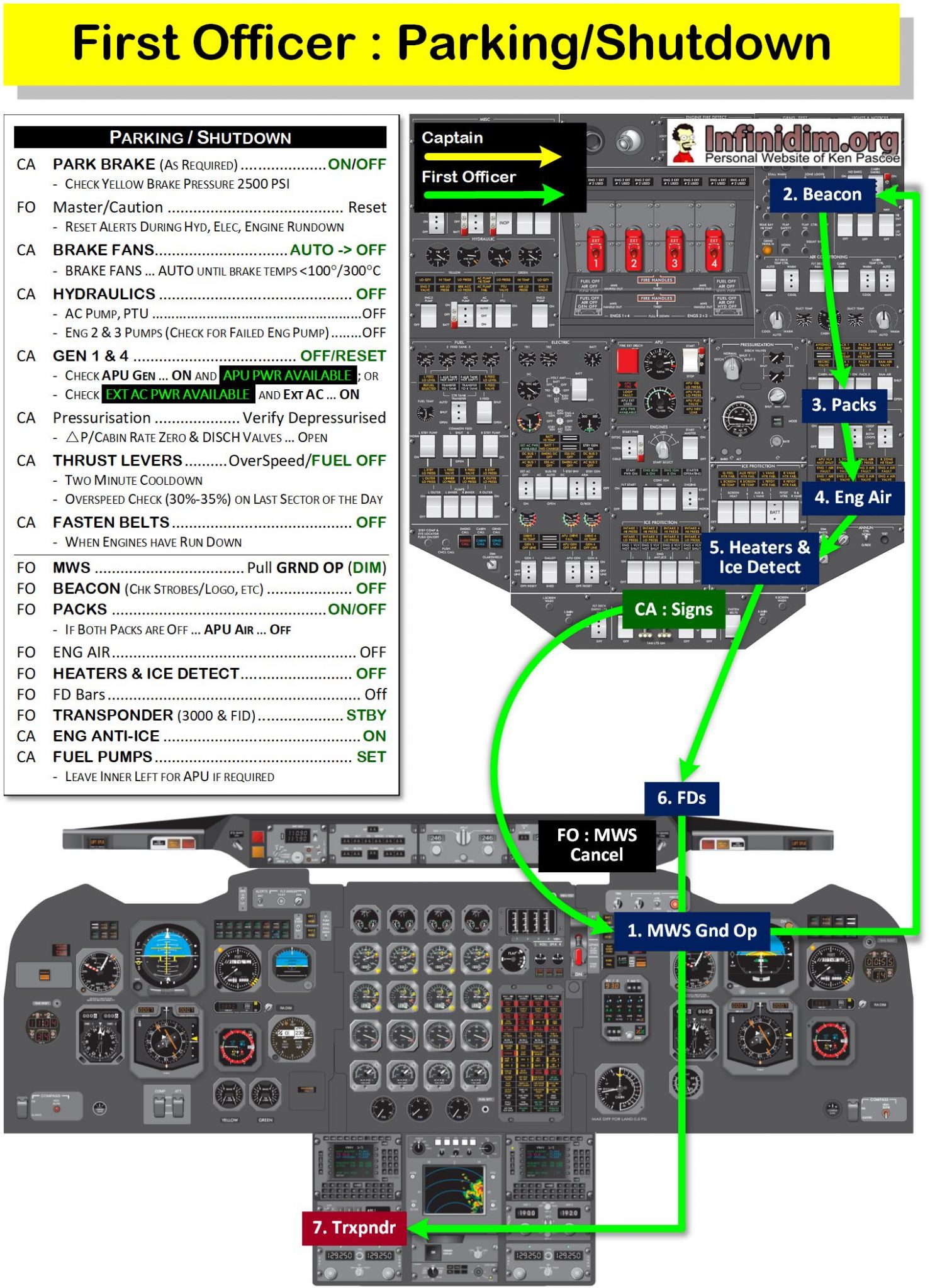

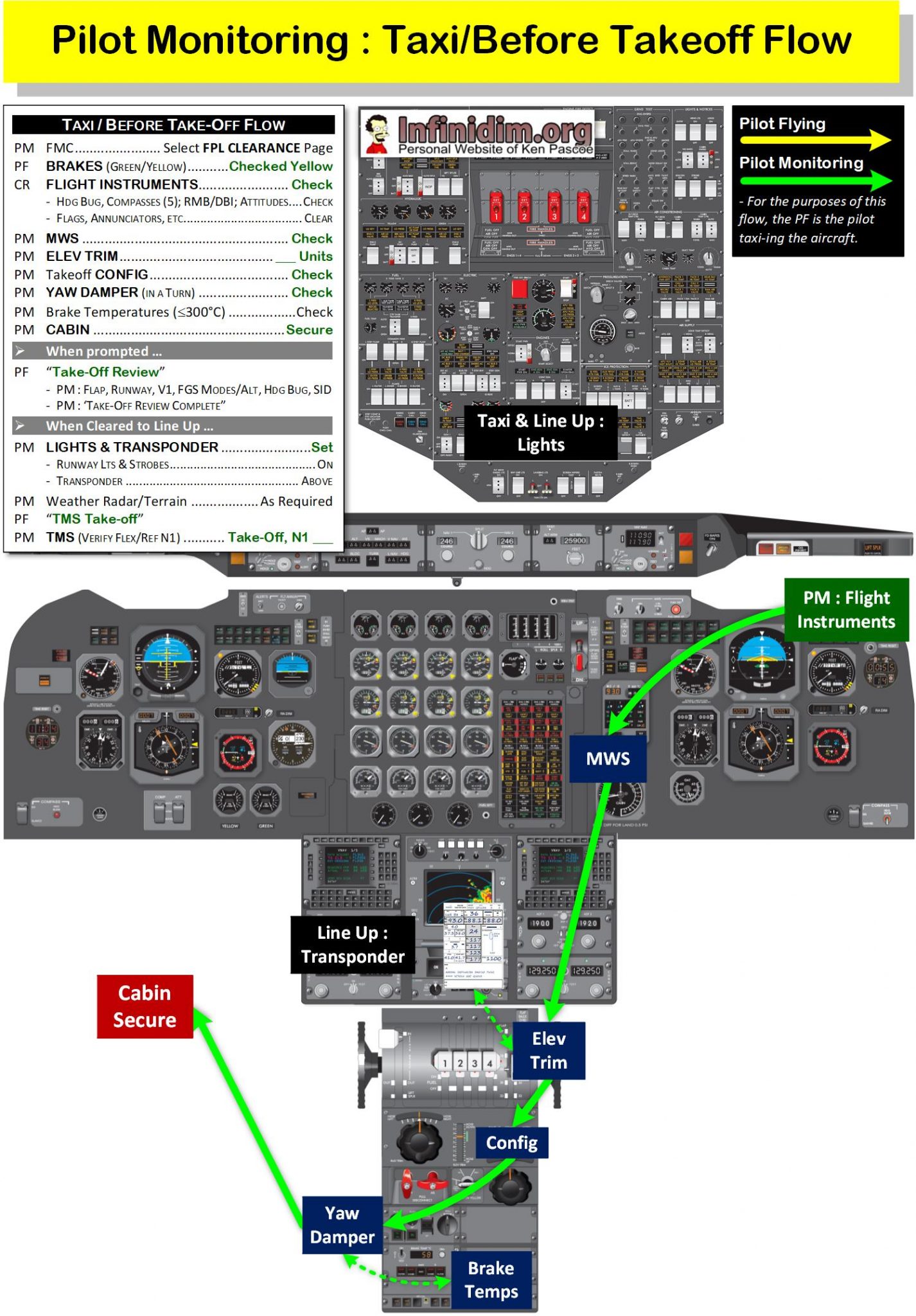

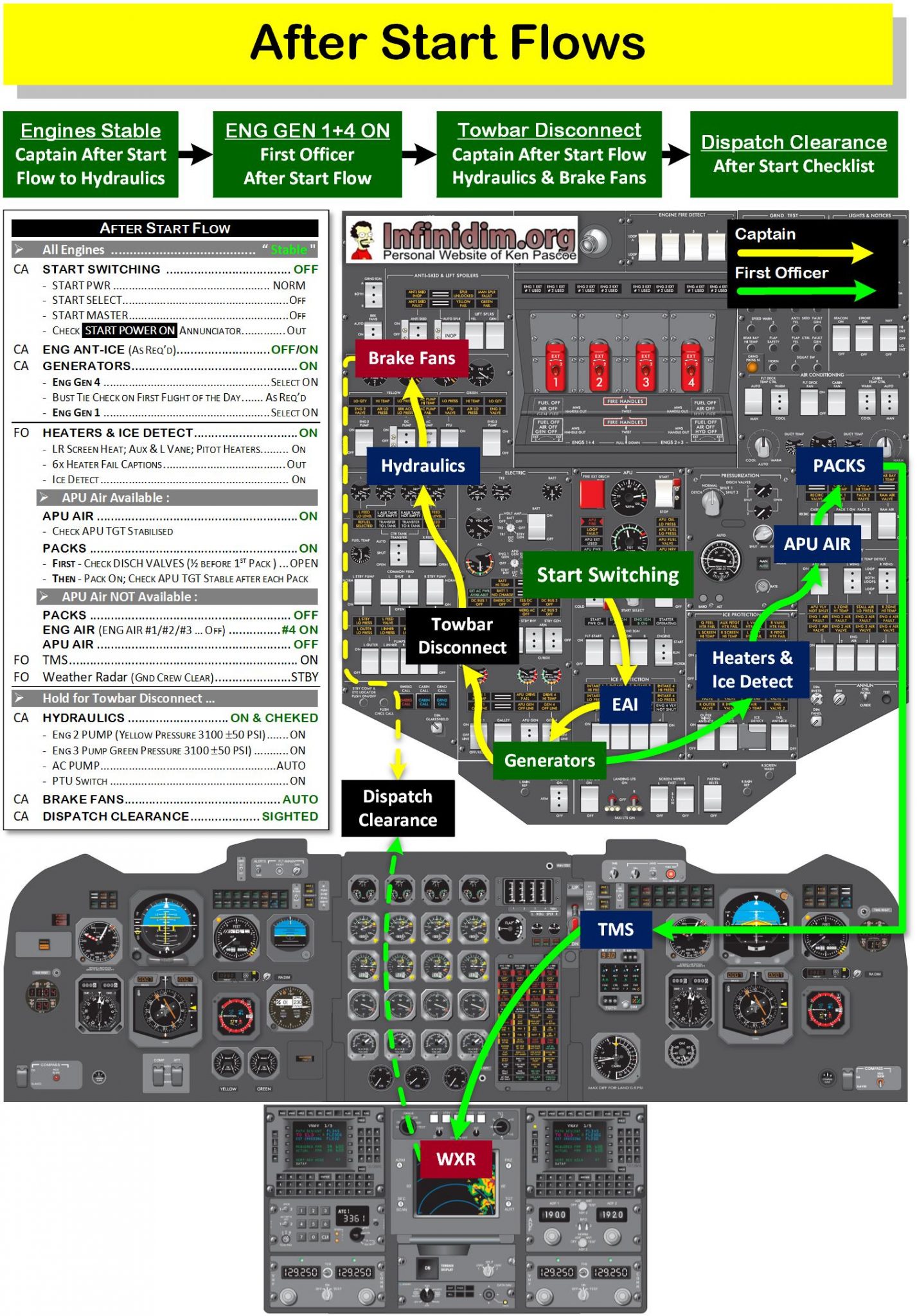

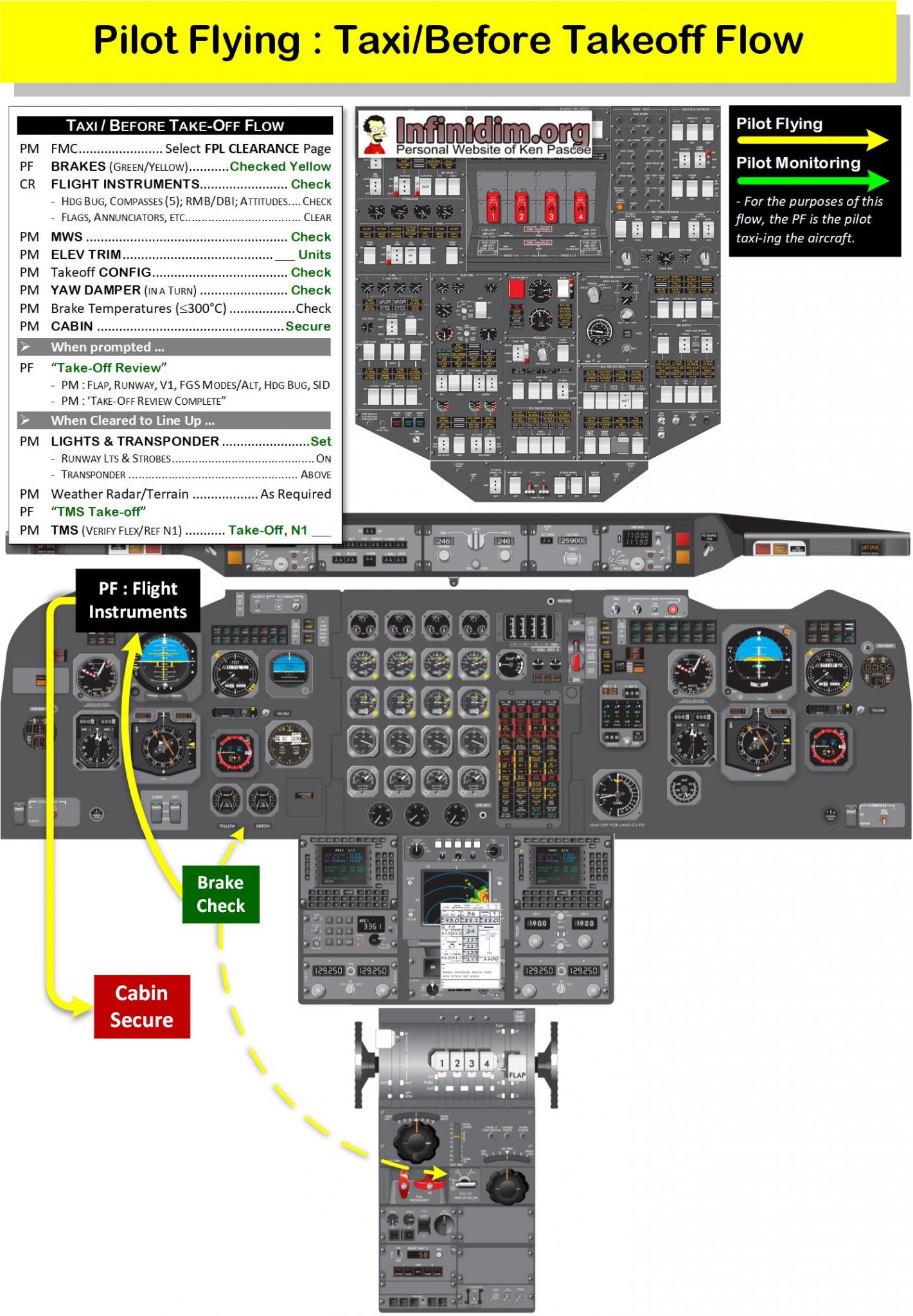

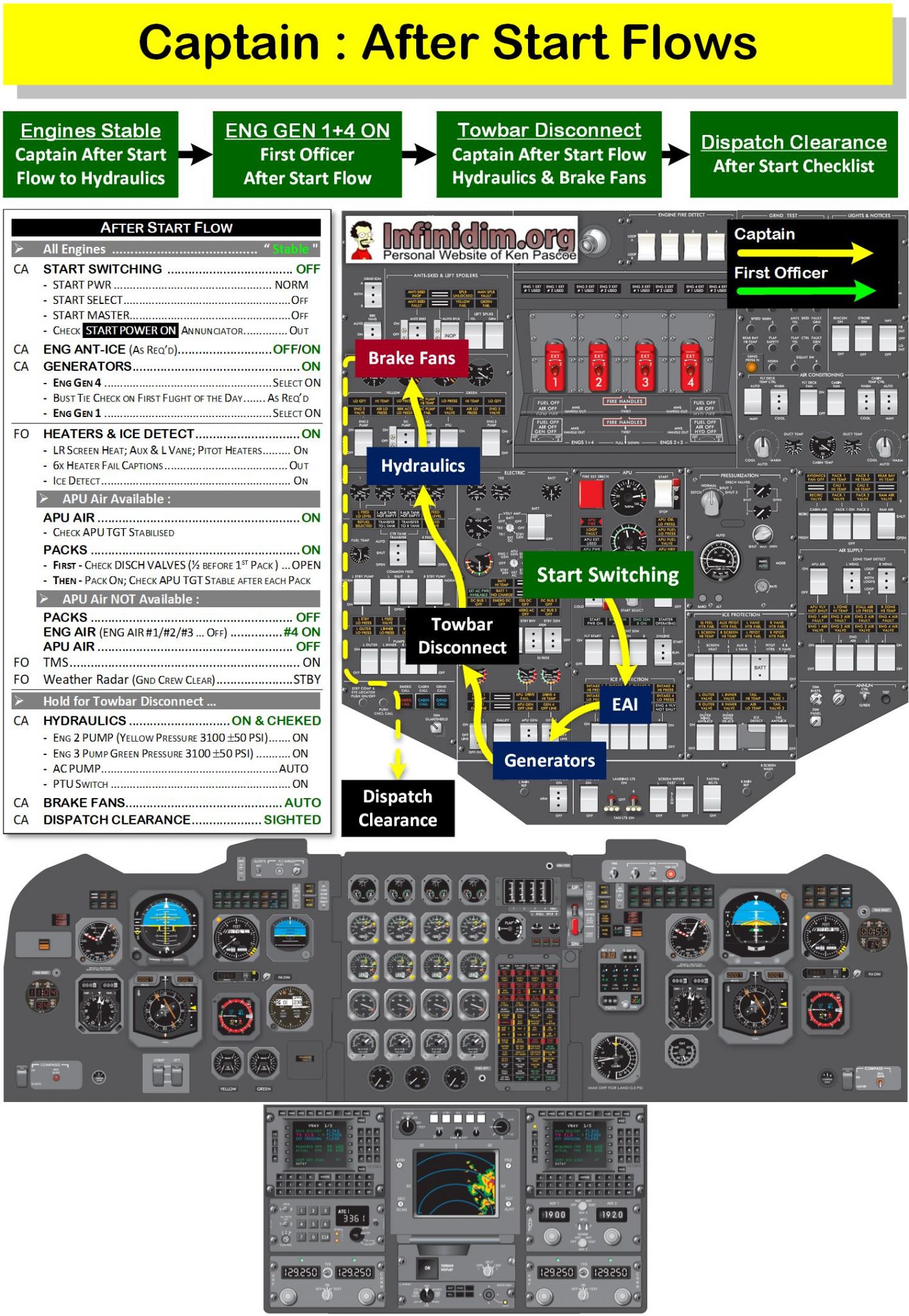

      After being made redundant last year from a B777 operation - I managed to find work on the BAe146 flying night freight. As part of my role I have been developing standardisation and SOPs on the aircraft. When you are new to an aircraft, there are normal operations flows to learn as the Captain/First Officer/Pilot Flying/Pilot Monitoring. These can be deduced or inferred from the FCOM Normal Checklist; from a SOPM, or specifically detailed in a training document. It's the latter that I have been working on. I have uploaded them here in case anyone finds them useful.

      My thanks to the person in the Facebook Queen of the Skies (BAe146RJ) Appreciation Group who sent me super-duper (emphasis on the duper) high res PDF's of the flight deck, on which these diagrams are based.

      https://www.infinidim.org/bae146-normal-ops-flows

      Regards Ken

      alt text
      alt text
      alt text
      alt text
      alt text
      alt text
      alt text
      alt text
      alt text
      alt text
      alt text
      alt text
      alt text
      alt text
      alt text
      alt text
