ATS Switchong back on on finals
-
Hello,
I am having an issue where on finals, after I have the ATS light extinguished, after a few throttle movements it reengages and sends me skywards again.
An help would be great
Dan
-
The ATS will reengage if:
- The aircraft enters the amber speed bar (VMA) and the VMA protection triggers.
- TOGA levers are triggered
- The ATS is manually re-engaged (either via the ATS push button, or control assignment)
Hope that helps.
Mark - Just Flight
-
Isnt the VMA too high? I always load flightplan and weights with simbrief.
F100 below 30to is significantly higher than the VApp speed -
I've just done a quick test with the F100 at 30,000 kg, and VMA looks correct. In the following screenshot, VMA is approximately 128, and the VREF for flaps 0 is 134.
VMA does vary with flap position, as well as the weights entered in the FMS.
Mark - Just Flight
-
I've just done a quick test with the F100 at 30,000 kg, and VMA looks correct. In the following screenshot, VMA is approximately 128, and the VREF for flaps 0 is 134.
VMA does vary with flap position, as well as the weights entered in the FMS.
Mark - Just Flight
@Mark thanks for reply, I know it varies with weight and flap setting.
But look at my example picture, the VMA is higher than the Vref speed, therefor the ATS kicks in way too early
-

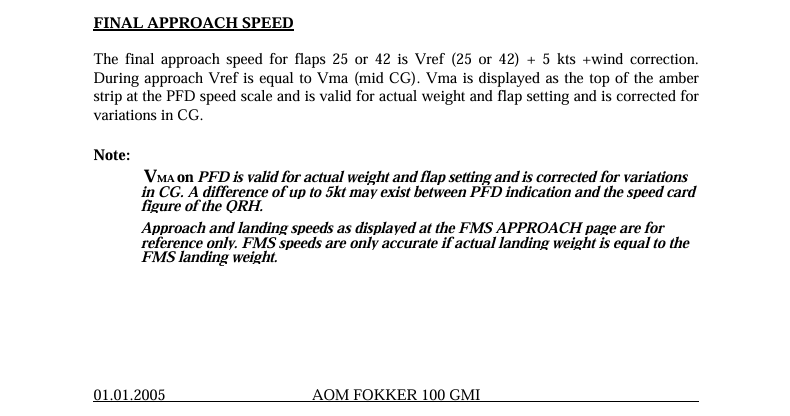

For the Fokker 100/70, Vref is Vma + 5 + wind correction. The applicable Vma is calculated by the FCC(Flight Control Computer); the Vref value displayed on the FMC/Landing Data cards serves merely as a reference.
-
For the Fokker 100/70, Vref is Vma + 5 + wind correction. The applicable Vma is calculated by the FCC(Flight Control Computer); the Vref value displayed on the FMC/Landing Data cards serves merely as a reference.
@Photonenbremse For reference, ok. But I doubt the reference is off by around 10 knots
-
In real life, the difference between FCC and speed card would be up to 5 kt.
